Installing your Carbon Monoxide (CO) Detector
How to install your CO Detector
Having issues with your Carbon Monoxide Detector?
Are you experiencing issues with your CO Sensor? Log in and try our troubleshooting wizard.
Video on how to install your Carbon Monoxide (CO) Detector
For further assistance on how to install your Carbon Monoxide (CO) Detector, please watch the video below:
Pre-installation checklist
To install your CO Detector, make sure you have the following in addition to the included equipment:
- Drill and 2mm bit
- Hammer
- Ladder
Installing your sensor using the mobile app
If this is the first time you are installing the TELUS SmartHome Security system
, before you install your sensors, make sure to follow the step-by-step guide included in the box first. After you complete these steps and successfully set up the Control Panel, you can then add more devices to your account.Don’t have the app or having trouble logging in? .
Click here to learn more
To add a sensor to your security system, use your TELUS SmartHome app and follow the instructions below:
- Log in to your TELUS SmartHome app on your mobile device.

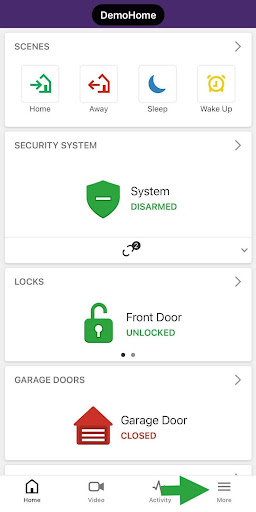

- SelectMoreat the bottom right-hand corner.

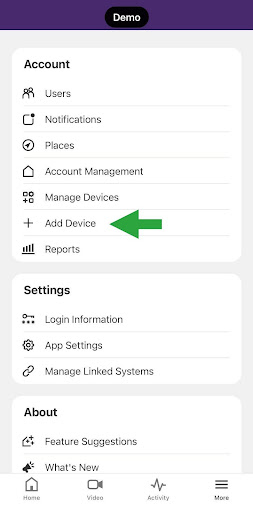

- Select+ Add Device.

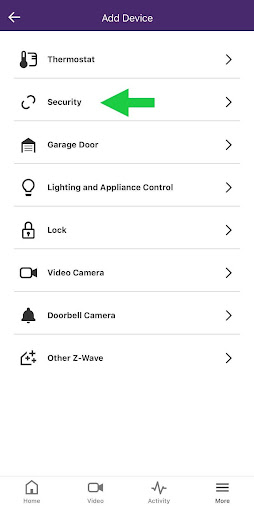

- SelectSecurity.
- Select your device and follow the on-screen instructions to complete the setup.
Once all of your sensors are added successfully, you will be shown how to complete a walk test to confirm that each sensor is working as expected. If you experience any issues at any time during your installation, please .
contact us
Troubleshooting your CO Detector
Where should I install my CO Detector?
Your CO Detector should be installed on a clean surface area inside your home. Make sure you wipe the location before installing your sensor. A good location for a CO Detector is:
- At least 12" from any wall if ceiling mounted
- At least 6" from the ceiling but not lower than a light switch if wall mounted
- Within 10 feet (3m) of a sleeping area
- Inside any room that contains a fuel burning appliance (or just outside any room with a fuel burning appliance if the room is not used regularly)
CO Detectors should NOT be installed:
- Directly above a sink, cooker, stove or oven
- Within five feet of any cooking appliances
- Near doors and windows with drafts
- In or below a cupboard
- In a location where the air flow is obstructed by curtains or furniture
- In a location where dirt or dust could collect and block the sensor
- Anywhere the sensor can be knocked, damaged or inadvertently removed
- On removable ceiling panels
How to mount my CO Detector

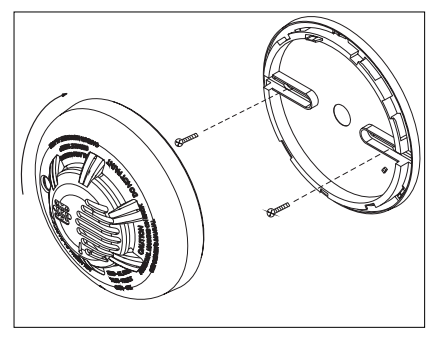

- Refer to the diagram below and install the mounting base on the ceiling or on the wall (if local ordinances permit) using screw locations as required. Use the two screws and anchors provided. Maneuver the base so the screws are at the elbow of the screw slots and secure.
- Fit the detector inside the base by aligning it over the base as shown (detector’s alignment notch should be slightly offset from mounting base tamper release tab), then turn the detector in a clockwise direction until it clicks into place.
My CO Detector is flashing/ making a sound
If your CO Detector is flashing or making a sound, see below for more information about the LED lights on your device and what the pattern may indicate.
Status | LEDs | Sound made |
Normal | Green flash every 12 seconds | Not applicable |
Alarm/test | Red flash every 12 seconds | ANSI S3.41 temporal 4 (press button to hush for 5 minutes) |
Detector trouble | Yellow flash every 6 seconds | One 100ms chirp every 45 seconds |
Low battery | Yellow flash every 12 seconds | One 100ms chirp every 45 seconds (press button to hush for 12 hours) |
Detector end of life | Yellow flash every 23 seconds | One 100ms chirp every 45 seconds |
Powering up | Green, yellow and red flash sequence every 12 seconds | One 100ms chirp at end of power-up sequence |
Tamper | Green, yellow and red flash sequence every 12 seconds | Not applicable |
My CO Detector is failing the walk test
If you are testing your sensor using the TELUS SmartHome mobile app and the device is consistently failing to pass the walk test, it is possible that you entered an incorrect sensor ID at an earlier stage or that the sensor is malfunctioning.
Please to resolve the issue and complete your installation.
contact us
How to check the expiry date of your CO Detector
In order to verify the expiry date of your CO Detector, please check the sticker attached to your detector:
Replacement of your expired CO Detector
What should I do if my CO Detector is expired?
If you have verified that your device is expired or is about to expire in the next three months
, please contact us
How to swap your CO Detector
Once you have received your new equipment, please follow these steps to swap your device:- Remove the detector by rotating it counterclockwise and pulling away from the baseplate.
- Fit the new detector inside the existing baseplate and rotate it clockwise until it clicks.
- For more information, please refer to.how to install your new Carbon Monoxide (CO) Detector
Please note
that in order for your new equipment to work correctly, it is important to remove your old device from your TELUS account
. Log in here
If you need help with removing your old device or if you require additional support, please .
contact us
