that matches the image and device name in the drop-down list. If you are unable to locate your device, please return to the

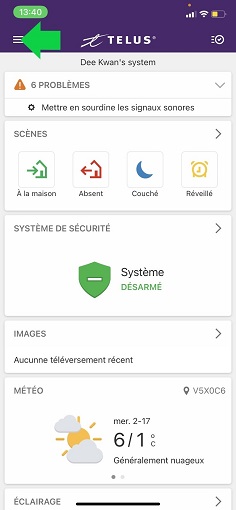

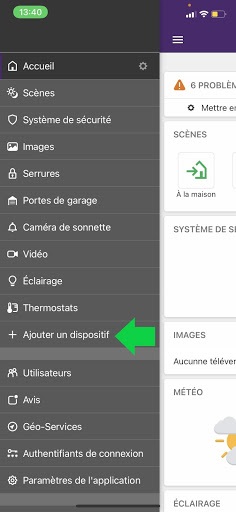

menu and select
If installing on a Control Panel, ensure your Control Panel is unlocked on the home screen before continuing
Please wait while the system is preparing for installation. Once your system is ready to add your device, it will show "Complete"
. Your Control Panel or Automation Hub will begin to search for your device
With the device plugged into an outlet, put the device in learn mode
For the device above, press the learn button on the front of the device twice.
For the device above, press the learn button on the top of the device once.
For the device above, press and long hold the learn button on the front of the device until it blinks amber, then press once for it to blink green.
Your Control Panel or Automation Hub will indicate that your device has been added to the network successfully
If the wizard does not recognize the device in 30 seconds, repeat the steps above
Enter a name for your device and select
. Congratulations, you have successfully added your new device to your account
to install additional devices or select
at the top right corner to complete the installation process
How to use your Smart Plug
Smart Plug - Appliance
The Smart Plug - Appliance can be used to control any electronic appliance that can be powered off. This device can be used for light bulbs or lamps that do not have dimming capabilities as well. After the device is installed, the connected appliance plugged into it can then be toggled on/off remotely through your TELUS SmartHome app or via your Control Panel.
Smart Plug - Dimmer
The Smart Plug - Dimmer can be used to control any lamps with a dimmable light bulb. After the device is installed, the lamp can be turned on/off and the brightness level can be adjusted remotely through your TELUS SmartHome app or via your Control Panel.
: The Smart Plug - Dimmer should be used with dimmable light bulbs only and is not compatible with existing dimmer switches.
